Span Aggregation: Time-Based and Count-Based Windows

Group events into non-overlapping spans for periodic rollups, time-series analysis, and windowed statistics. This tutorial shows you how to aggregate logs into fixed windows without losing per-event processing power.

Overview

Kelora's span feature groups filtered events into logical blocks during log processing. Events can be grouped by count, time windows, or field changes. The system tracks metadata for each span and allows emission of per-span summaries via a hook script when each span closes.

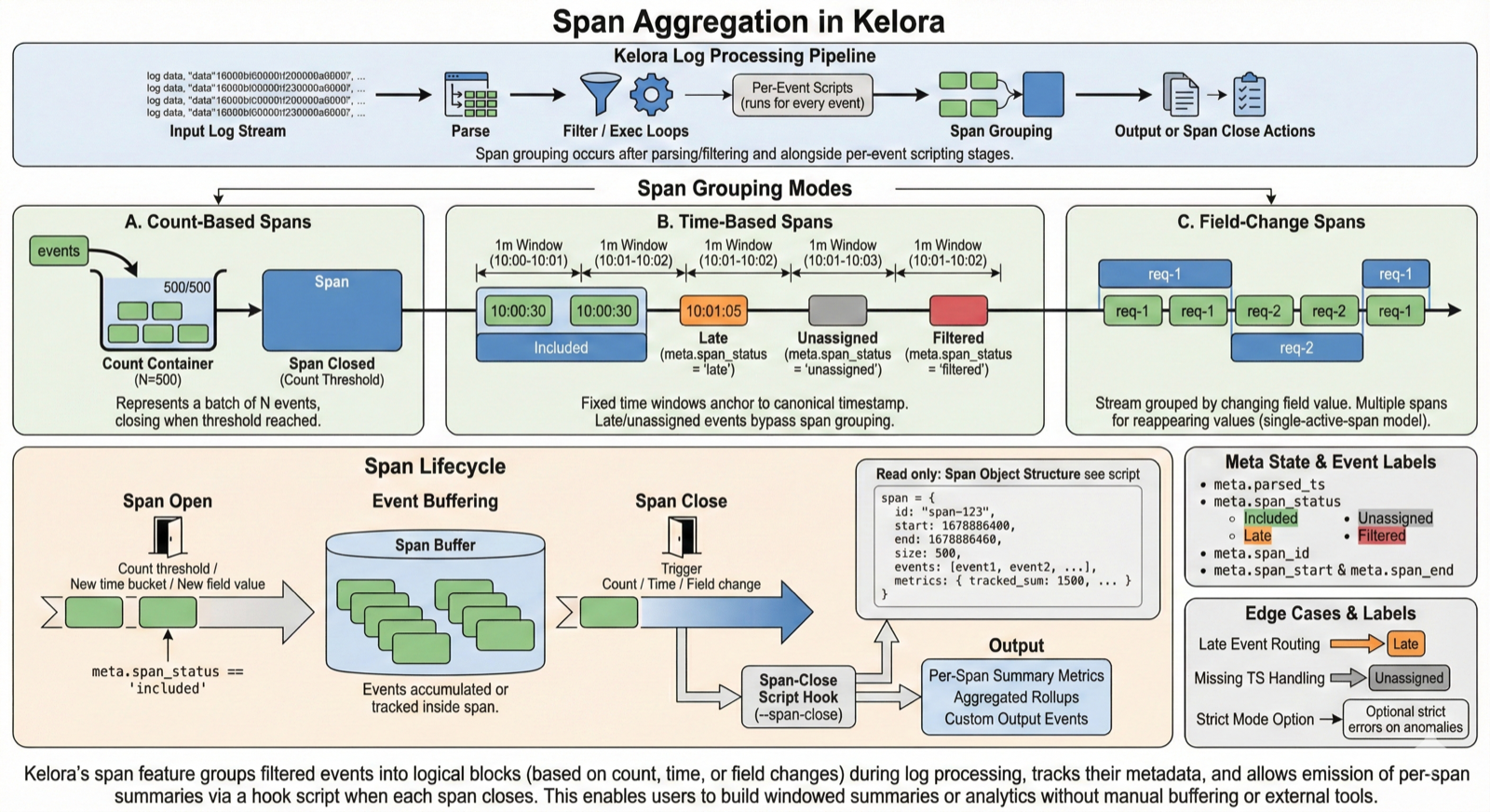

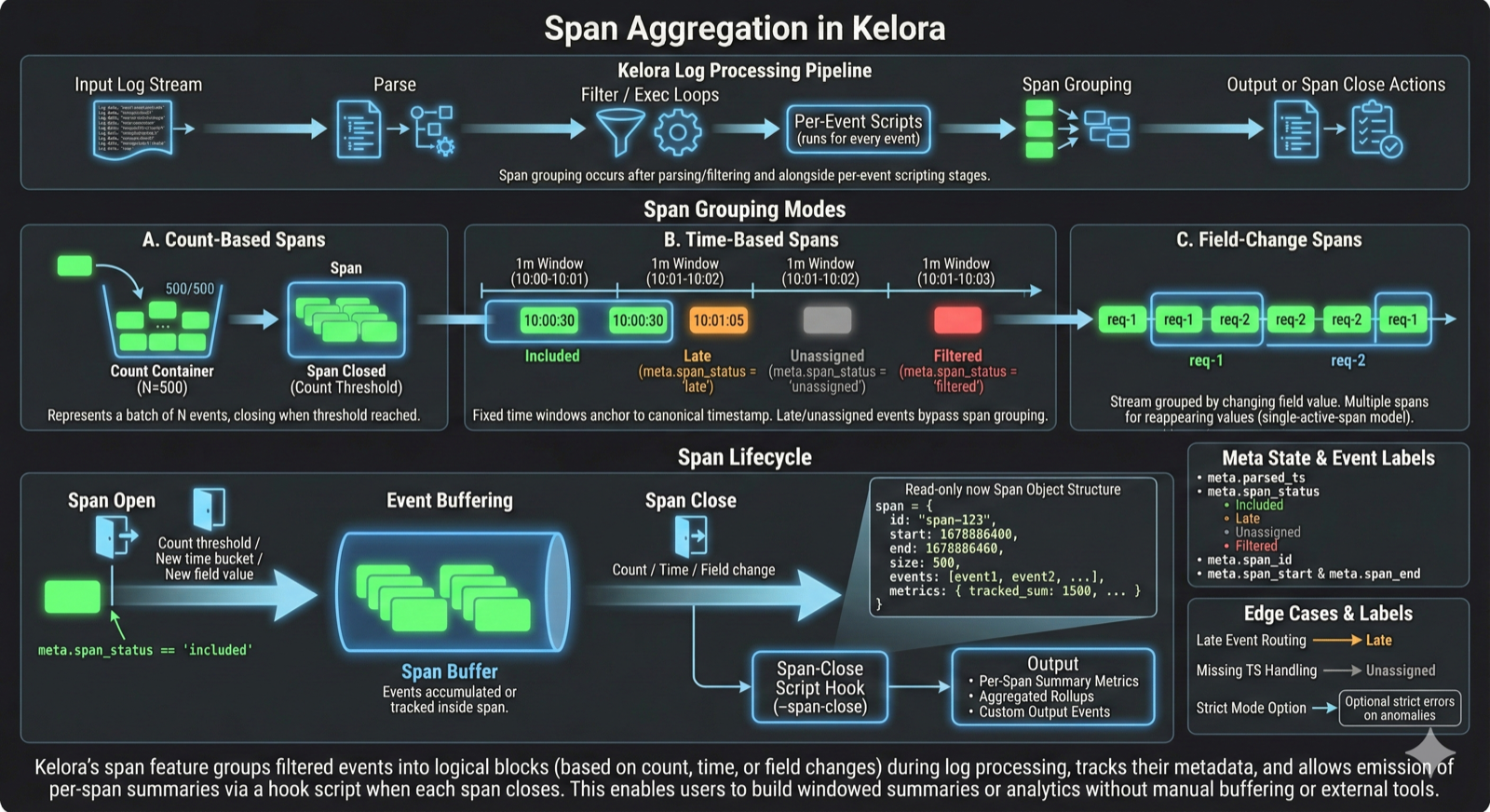

The diagram above illustrates the complete span aggregation pipeline, showing how events flow through parsing, filtering, and per-event scripts before being grouped into spans. Three span modes are available: count-based (batching N events), time-based (fixed time windows), and field-change based (grouping by field values). The span lifecycle manages event buffering, tracks metadata, and triggers span-close hooks for summaries and analytics.

What You'll Learn

• Create count-based spans to batch every N events
• Build time-aligned windows for dashboard rollups
• Access span events and per-span metrics in --span-close hooks
• Handle late arrivals and missing timestamps gracefully
• Tag events with span metadata for downstream tools
• Choose between count and time spans for your use case

Prerequisites

• Basics: Input, Display & Filtering - Basic CLI usage
• Introduction to Rhai Scripting - Rhai fundamentals
• Begin and End Stages - Understanding --begin and --end
• Time: ~20 minutes

Sample Data

This tutorial uses:

• examples/simple_json.jsonl - Application logs with timestamps
• Generated data for demonstrations

All commands use markdown-exec format, so output is live from the actual CLI.

---

Step 1: Count-Based Spans – Batch Every N Events

The simplest span mode: close a span every N events that survive your filters.

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --span 5 \
  --span-close 'print("Span " + span.id + " had " + span.size.to_string() + " events")'

kelora -j examples/simple_json.jsonl \
  -q \
  --span 5 \
  --span-close 'print("Span " + span.id + " had " + span.size.to_string() + " events")'

kelora: Config: /home/runner/.config/kelora/kelora.ini
Span #0 had 5 events
Span #1 had 5 events
Span #2 had 5 events
Span #3 had 5 events

What's happening:

• --span 5 batches every 5 events
• Spans are numbered sequentially: #0, #1, #2, etc.
• --span-close runs when each span finishes
• span.id and span.size provide basic span info

Use case: "Every 1000 errors, emit a summary line" or "Batch API calls into groups of 100 for rate limiting."

Count Spans Operate Post-Filter

Spans count events that survive your filters:

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --filter 'e.level == "ERROR"' \
  --span 2 \
  --span-close 'print("Error batch " + span.id + ": " + span.size.to_string() + " errors")'

kelora -j examples/simple_json.jsonl \
  -q \
  --filter 'e.level == "ERROR"' \
  --span 2 \
  --span-close 'print("Error batch " + span.id + ": " + span.size.to_string() + " errors")'

kelora: Config: /home/runner/.config/kelora/kelora.ini
Error batch #0: 2 errors
Error batch #1: 1 errors

The filter removes non-ERROR events, then spans batch every 2 remaining errors.

---

Step 2: Accessing Span Events – Iterate Over the Batch

The span.events array contains all events that were included in the span:

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --span 5 \
  --span-close '
    print("=== Span " + span.id + " ===");
    for evt in span.events {
      print("  " + evt.service + ": " + evt.message);
    }
  '

kelora -j examples/simple_json.jsonl \
  -q \
  --span 5 \
  --span-close '
    print("=== Span " + span.id + " ===");
    for evt in span.events {
      print("  " + evt.service + ": " + evt.message);
    }
  '

kelora: Config: /home/runner/.config/kelora/kelora.ini
=== Span #0 ===
  api: Application started
  api: Loading configuration
  database: Connection pool initialized
  api: High memory usage detected
  database: Query timeout
=== Span #1 ===
  api: Request received
  cache: Cache hit
  api: Response sent
  auth: Failed login attempt
  auth: Account locked
=== Span #2 ===
  scheduler: Cron job started
  scheduler: Running backup script
  scheduler: Backup completed
  disk: Disk space critical
  api: Service unavailable
=== Span #3 ===
  monitoring: Alert sent
  admin: Disk cleanup initiated
  admin: Cleanup completed
  api: Service resumed
  health: Health check passed

What's in span.events:

• Each element is a full event map with all fields
• Includes original fields plus line, line_num, filename (if applicable)
• Includes span metadata: span_status, span_id, span_start, span_end

Span Script Variable Reference

Inside --span-close the important bindings are span.id, span.start, span.end, span.size, span.events, span.metrics, and the global metrics map. Use span.metrics for per-span deltas and metrics for cumulative totals. See the Script Variables reference for the full scope matrix, including helpers such as meta.span_status, meta.span_id, and when window is available.

--span-close executes outside the per-event pipeline, so treat it as a summary hook: rely on span.* and metrics for aggregates, and loop over span.events when you need per-event details.

Use case: Collect request IDs for correlation, extract specific fields for detailed reports, or forward events to external systems.

Extract Specific Fields from Events

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --filter 'e.level == "ERROR" || e.level == "WARN"' \
  --span 3 \
  --span-close '
    let services = span.events.map(|e| e.service).join(", ");
    print("Span " + span.id + " services: " + services);
  '

kelora -j examples/simple_json.jsonl \
  -q \
  --filter 'e.level == "ERROR" || e.level == "WARN"' \
  --span 3 \
  --span-close '
    let services = span.events.map(|e| e.service).join(", ");
    print("Span " + span.id + " services: " + services);
  '

kelora: Config: /home/runner/.config/kelora/kelora.ini
Span #0 services: api, database, auth
Span #1 services: auth, api, monitoring
Span #2 services:

The .map() function extracts a field from each event, creating an array of values you can process.

---

Step 3: Time-Based Spans – Aligned Windows

Use durations (5m, 1h, 30s) to create fixed wall-clock windows:

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --span 1m \
  --span-close 'print("Window: " + span.id + " (" + span.size.to_string() + " events)")'

kelora -j examples/simple_json.jsonl \
  -q \
  --span 1m \
  --span-close 'print("Window: " + span.id + " (" + span.size.to_string() + " events)")'

kelora: Config: /home/runner/.config/kelora/kelora.ini
Window: 2024-01-15T10:00:00Z/1m (3 events)
Window: 2024-01-15T10:01:00Z/1m (2 events)
Window: 2024-01-15T10:02:00Z/1m (3 events)
Window: 2024-01-15T10:03:00Z/1m (2 events)
Window: 2024-01-15T10:04:00Z/1m (1 events)
Window: 2024-01-15T10:05:00Z/1m (1 events)
Window: 2024-01-15T10:10:00Z/1m (1 events)
Window: 2024-01-15T10:15:00Z/1m (1 events)
Window: 2024-01-15T10:16:00Z/1m (1 events)
Window: 2024-01-15T10:17:00Z/1m (1 events)
Window: 2024-01-15T10:20:00Z/1m (1 events)
Window: 2024-01-15T10:25:00Z/1m (1 events)
Window: 2024-01-15T10:26:00Z/1m (1 events)
Window: 2024-01-15T10:30:00Z/1m (1 events)

Time span properties:

• Span IDs are ISO-timestamp/duration format: 2024-01-15T10:00:00Z/1m
• Windows align to duration boundaries (not first event timestamp)
• span.start and span.end are DateTime objects
• Requires events to have timestamps (auto-detected or parsed)

Working with Span Start and End Times

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --span 2m \
  --span-close '
    print("Window: " + span.id);
    print("  Start: " + span.start.to_iso());
    print("  End: " + span.end.to_iso());
    print("  Events: " + span.size.to_string());
  '

kelora -j examples/simple_json.jsonl \
  -q \
  --span 2m \
  --span-close '
    print("Window: " + span.id);
    print("  Start: " + span.start.to_iso());
    print("  End: " + span.end.to_iso());
    print("  Events: " + span.size.to_string());
  '

kelora: Config: /home/runner/.config/kelora/kelora.ini
Window: 2024-01-15T10:00:00Z/2m
  Start: 2024-01-15T10:00:00+00:00
  End: 2024-01-15T10:02:00+00:00
  Events: 5
Window: 2024-01-15T10:02:00Z/2m
  Start: 2024-01-15T10:02:00+00:00
  End: 2024-01-15T10:04:00+00:00
  Events: 5
Window: 2024-01-15T10:04:00Z/2m
  Start: 2024-01-15T10:04:00+00:00
  End: 2024-01-15T10:06:00+00:00
  Events: 2
Window: 2024-01-15T10:10:00Z/2m
  Start: 2024-01-15T10:10:00+00:00
  End: 2024-01-15T10:12:00+00:00
  Events: 1
Window: 2024-01-15T10:14:00Z/2m
  Start: 2024-01-15T10:14:00+00:00
  End: 2024-01-15T10:16:00+00:00
  Events: 1
Window: 2024-01-15T10:16:00Z/2m
  Start: 2024-01-15T10:16:00+00:00
  End: 2024-01-15T10:18:00+00:00
  Events: 2
Window: 2024-01-15T10:20:00Z/2m
  Start: 2024-01-15T10:20:00+00:00
  End: 2024-01-15T10:22:00+00:00
  Events: 1
Window: 2024-01-15T10:24:00Z/2m
  Start: 2024-01-15T10:24:00+00:00
  End: 2024-01-15T10:26:00+00:00
  Events: 1
Window: 2024-01-15T10:26:00Z/2m
  Start: 2024-01-15T10:26:00+00:00
  End: 2024-01-15T10:28:00+00:00
  Events: 1
Window: 2024-01-15T10:30:00Z/2m
  Start: 2024-01-15T10:30:00+00:00
  End: 2024-01-15T10:32:00+00:00
  Events: 1

span.start and span.end are DateTime objects with full date/time methods available.

Use case: Generate 5-minute rollups for dashboards, create hourly error summaries, build time-series metrics aligned to fixed intervals.

---

Field-Based Spans – Value Changes

Open a new span whenever a field value changes. This is great for per-request or per-session rollups without pre-sorting.

kelora -j examples/simple_json.jsonl \
  --span request_id \
  --span-close 'print("Request " + span.id + ": " + span.size.to_string() + " events")'

Notes:

• Missing fields stay in the current span (error with --strict); the first missing field opens an (unset) span.
• Single-active-span model: interleaved IDs (req-1, req-2, req-1) create multiple spans per ID.

---

Idle-Based Spans – Inactivity Timeouts

Detect sessions or bursts separated by quiet periods.

kelora -j examples/simple_json.jsonl \
  --span-idle 5m \
  --span-close 'print("Session " + span.id + ": " + span.size.to_string() + " events")'

Notes:

• Requires timestamps; missing timestamps are unassigned (error with --strict).
• Only forward-time gaps close spans. Out-of-order events are included in the current span; sort input first if you need strict ordering.
• --span-idle is mutually exclusive with --span.

---

Step 4: Per-Span Metrics – Automatic Deltas

Combine track_*() functions in --exec with span.metrics in --span-close for automatic per-window aggregation:

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --exec '
    track_count("total");
    if e.level == "ERROR" { track_count("errors"); }
    if e.level == "WARN" { track_count("warnings"); }
  ' \
  --span 5 \
  --span-close '
    let m = span.metrics;
    let total = m.get_path("total", 0);
    let errors = m.get_path("errors", 0);
    let warnings = m.get_path("warnings", 0);
    print(`Span ${span.id}: ${total} total, ${errors} errors, ${warnings} warnings`);
  '

kelora -j examples/simple_json.jsonl \
  -q \
  --exec '
    track_count("total");
    if e.level == "ERROR" { track_count("errors"); }
    if e.level == "WARN" { track_count("warnings"); }
  ' \
  --span 5 \
  --span-close '
    let m = span.metrics;
    let total = m.get_path("total", 0);
    let errors = m.get_path("errors", 0);
    let warnings = m.get_path("warnings", 0);
    print(`Span ${span.id}: ${total} total, ${errors} errors, ${warnings} warnings`);
  '

kelora: Config: /home/runner/.config/kelora/kelora.ini
Span #0: 5 total, 1 errors, 1 warnings
Span #1: 5 total, 1 errors, 1 warnings
Span #2: 5 total, 1 errors, 0 warnings
Span #3: 5 total, 0 errors, 1 warnings
kelora hint: Metrics recorded; rerun with -m or --metrics=json to view them.

How span metrics work:

1. Kelora snapshots metrics at span open (baseline)
2. Your --exec scripts call track_*() functions per event
3. At span close, Kelora computes deltas: current - baseline
4. Only deltas appear in span.metrics (zeros are omitted)
5. Metrics auto-reset after each span (no manual clearing needed)

Note: Use .get_path(key, default) to safely extract values, since only non-zero deltas are included.

Time-Based Metrics Example

Calculate error rates per 1-minute window:

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --exec '
    track_count("requests");
    if e.level == "ERROR" { track_count("errors"); }
  ' \
  --span 1m \
  --span-close '
    let m = span.metrics;
    let requests = m.get_path("requests", 0);
    let errors = m.get_path("errors", 0);
    let rate = if requests > 0 { (errors * 100) / requests } else { 0 };
    print(`${span.start.to_iso()}: ${errors}/${requests} errors (${rate}%)`);
  '

kelora -j examples/simple_json.jsonl \
  -q \
  --exec '
    track_count("requests");
    if e.level == "ERROR" { track_count("errors"); }
  ' \
  --span 1m \
  --span-close '
    let m = span.metrics;
    let requests = m.get_path("requests", 0);
    let errors = m.get_path("errors", 0);
    let rate = if requests > 0 { (errors * 100) / requests } else { 0 };
    print(`${span.start.to_iso()}: ${errors}/${requests} errors (${rate}%)`);
  '

kelora: Config: /home/runner/.config/kelora/kelora.ini
2024-01-15T10:00:00+00:00: 0/3 errors (0%)
2024-01-15T10:01:00+00:00: 1/2 errors (50%)
2024-01-15T10:02:00+00:00: 0/3 errors (0%)
2024-01-15T10:03:00+00:00: 1/2 errors (50%)
2024-01-15T10:04:00+00:00: 0/1 errors (0%)
2024-01-15T10:05:00+00:00: 0/1 errors (0%)
2024-01-15T10:10:00+00:00: 0/1 errors (0%)
2024-01-15T10:15:00+00:00: 0/1 errors (0%)
2024-01-15T10:16:00+00:00: 1/1 errors (100%)
2024-01-15T10:17:00+00:00: 0/1 errors (0%)
2024-01-15T10:20:00+00:00: 0/1 errors (0%)
2024-01-15T10:25:00+00:00: 0/1 errors (0%)
2024-01-15T10:26:00+00:00: 0/1 errors (0%)
2024-01-15T10:30:00+00:00: 0/1 errors (0%)
kelora hint: Metrics recorded; rerun with -m or --metrics=json to view them.

---

Step 5: Global Metrics – Compare Spans to Cumulative Totals

Inside --span-close you have access to two metrics maps:

• span.metrics – Delta for this span only (resets after each span)
• metrics – Cumulative totals across the entire run

This lets you compare per-window activity against overall trends:

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --exec 'track_count("total"); if e.level == "ERROR" { track_count("errors"); }' \
  --span 5 \
  --span-close '
    let span_err = span.metrics.get_path("errors", 0);
    let total_err = metrics.get_path("errors", 0);
    eprint(`Span ${span.id}: +${span_err} errors (total: ${total_err})`);
  '

kelora -j examples/simple_json.jsonl \
  -q \
  --exec 'track_count("total"); if e.level == "ERROR" { track_count("errors"); }' \
  --span 5 \
  --span-close '
    let span_err = span.metrics.get_path("errors", 0);
    let total_err = metrics.get_path("errors", 0);
    eprint(`Span ${span.id}: +${span_err} errors (total: ${total_err})`);
  '

kelora: Config: /home/runner/.config/kelora/kelora.ini
Span #0: +1 errors (total: 1)
Span #1: +1 errors (total: 2)
Span #2: +1 errors (total: 3)
Span #3: +0 errors (total: 3)
kelora hint: Metrics recorded; rerun with -m or --metrics=json to view them.

Key differences:

Feature	span.metrics	metrics
Scope	Current span only	Entire run
Values	Deltas (what changed)	Cumulative totals
Reset	After each span	Never

Spike Detection – Compare to Average

Detect anomalies by comparing span activity to overall rates:

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --exec 'track_count("requests"); if e.level == "ERROR" { track_count("errors"); }' \
  --span 3 \
  --span-close '
    let span_rate = span.metrics.get_path("errors", 0) * 100 / span.size;
    let total_rate = metrics.get_path("errors", 0) * 100 /
                     metrics.get_path("requests", 1);
    if span_rate > total_rate * 2 {
      eprint(`🚨 Spike in ${span.id}: ${span_rate}% (avg: ${total_rate}%)`);
    }
  '

kelora -j examples/simple_json.jsonl \
  -q \
  --exec 'track_count("requests"); if e.level == "ERROR" { track_count("errors"); }' \
  --span 3 \
  --span-close '
    let span_rate = span.metrics.get_path("errors", 0) * 100 / span.size;
    let total_rate = metrics.get_path("errors", 0) * 100 /
                     metrics.get_path("requests", 1);
    if span_rate > total_rate * 2 {
      eprint(`🚨 Spike in ${span.id}: ${span_rate}% (avg: ${total_rate}%)`);
    }
  '

kelora: Config: /home/runner/.config/kelora/kelora.ini
🚨 Spike in #1: 33% (avg: 16%)
🚨 Spike in #3: 33% (avg: 16%)
kelora hint: Metrics recorded; rerun with -m or --metrics=json to view them.

Use case: Detect sudden increases in error rates, latency spikes, or unusual traffic patterns relative to baseline.

---

Step 6: Late Events and Missing Timestamps

Time-based spans track event status for better handling of out-of-order or missing data.

Detecting Late Events

Events arriving earlier than the current span window are marked as "late":

CommandOutput

echo '{"ts":"2024-01-15T10:05:00Z","msg":"Event 1"}
{"ts":"2024-01-15T10:06:00Z","msg":"Event 2"}
{"ts":"2024-01-15T10:04:00Z","msg":"Late event"}
{"ts":"2024-01-15T10:07:00Z","msg":"Event 3"}' | \
kelora -j \
  --span 1m \
  --exec '
    if meta.span_status == "late" {
      eprint(`⚠️  Late event: ${e.msg} at ${e.ts}`);
    }
  ' \
  --span-close 'print("Window " + span.id + ": " + span.size.to_string() + " events")'

echo '{"ts":"2024-01-15T10:05:00Z","msg":"Event 1"}
{"ts":"2024-01-15T10:06:00Z","msg":"Event 2"}
{"ts":"2024-01-15T10:04:00Z","msg":"Late event"}
{"ts":"2024-01-15T10:07:00Z","msg":"Event 3"}' | \
kelora -j \
  --span 1m \
  --exec '
    if meta.span_status == "late" {
      eprint(`⚠️  Late event: ${e.msg} at ${e.ts}`);
    }
  ' \
  --span-close 'print("Window " + span.id + ": " + span.size.to_string() + " events")'

kelora: Config: /home/runner/.config/kelora/kelora.ini
ts='2024-01-15T10:05:00Z' msg='Event 1'
Window 2024-01-15T10:05:00Z/1m: 1 events
ts='2024-01-15T10:06:00Z' msg='Event 2'
⚠️  Late event: Late event at 2024-01-15T10:04:00Z
ts='2024-01-15T10:04:00Z' msg='Late event'
Window 2024-01-15T10:06:00Z/1m: 1 events
ts='2024-01-15T10:07:00Z' msg='Event 3'
Window 2024-01-15T10:07:00Z/1m: 1 events

Late event behavior:

• Late events still pass through your --filter and --exec scripts
• They are tagged with meta.span_status == "late"
• They do NOT reopen closed spans
• They do NOT appear in span.events of closed spans

Best practice: Pre-sort logs by timestamp if you need accurate time windows. Or use late event detection to emit warnings/corrections.

Handling Missing Timestamps

Events without timestamps are marked as "unassigned":

CommandOutput

echo '{"ts":"2024-01-15T10:05:00Z","msg":"Has timestamp"}
{"msg":"No timestamp"}
{"ts":"2024-01-15T10:06:00Z","msg":"Has timestamp 2"}' | \
kelora -j \
  --span 1m \
  --exec '
    if meta.span_status == "unassigned" {
      eprint("⚠️  No timestamp: " + e.msg);
    }
  ' \
  --span-close 'print("Window " + span.id + ": " + span.size.to_string() + " events")'

echo '{"ts":"2024-01-15T10:05:00Z","msg":"Has timestamp"}
{"msg":"No timestamp"}
{"ts":"2024-01-15T10:06:00Z","msg":"Has timestamp 2"}' | \
kelora -j \
  --span 1m \
  --exec '
    if meta.span_status == "unassigned" {
      eprint("⚠️  No timestamp: " + e.msg);
    }
  ' \
  --span-close 'print("Window " + span.id + ": " + span.size.to_string() + " events")'

kelora: Config: /home/runner/.config/kelora/kelora.ini
ts='2024-01-15T10:05:00Z' msg='Has timestamp'
⚠️  No timestamp: No timestamp
msg='No timestamp'
Window 2024-01-15T10:05:00Z/1m: 1 events
ts='2024-01-15T10:06:00Z' msg='Has timestamp 2'
Window 2024-01-15T10:06:00Z/1m: 1 events

Unassigned event behavior:

• Cannot be assigned to a time window
• Tagged with meta.span_status == "unassigned"
• Still pass through filters and exec scripts
• Do NOT appear in span.events

Strict mode: Use --strict to abort on missing timestamps instead of continuing:

kelora -j --span 5m --strict app.log
# Error: event missing required timestamp for --span

---

Step 7: Tagging Events Without --span-close

You can use --span to tag events with window metadata without writing a close hook:

CommandOutput

kelora -j examples/simple_json.jsonl \
  --span 2m \
  --exec 'e.window_id = meta.span_id' \
  --take 5 \
  -k timestamp,service,window_id

kelora -j examples/simple_json.jsonl \
  --span 2m \
  --exec 'e.window_id = meta.span_id' \
  --take 5 \
  -k timestamp,service,window_id

kelora: Config: /home/runner/.config/kelora/kelora.ini
timestamp='2024-01-15T10:00:00Z' service='api' window_id='2024-01-15T10:00:00Z/2m'
timestamp='2024-01-15T10:00:05Z' service='api' window_id='2024-01-15T10:00:00Z/2m'
timestamp='2024-01-15T10:00:10Z' service='database' window_id='2024-01-15T10:00:00Z/2m'
timestamp='2024-01-15T10:01:00Z' service='api' window_id='2024-01-15T10:00:00Z/2m'
timestamp='2024-01-15T10:01:30Z' service='database' window_id='2024-01-15T10:00:00Z/2m'

Use case: Forward events to external tools (DuckDB, jq, spreadsheets) that will do their own grouping:

kelora -j logs/*.jsonl --span 5m --exec 'e.window = meta.span_id' -F json |
  jq -sc 'group_by(.window) | map({window: .[0].window, count: length})'

This is lightweight – Kelora doesn't buffer events or compute metrics, just tags them with span IDs.

---

Step 8: Combining Filters, Execs, and Spans

Spans work seamlessly with multi-stage pipelines:

CommandOutput

kelora -j examples/simple_json.jsonl \
  -q \
  --exec 'e.is_error = (e.level == "ERROR")' \
  --filter 'e.is_error' \
  --exec 'track_count(e.service)' \
  --span 2 \
  --span-close '
    print("Error batch " + span.id + ":");
    let m = span.metrics;
    for key in m.keys() {
      print("  " + key + ": " + m[key].to_string());
    }
  '

kelora -j examples/simple_json.jsonl \
  -q \
  --exec 'e.is_error = (e.level == "ERROR")' \
  --filter 'e.is_error' \
  --exec 'track_count(e.service)' \
  --span 2 \
  --span-close '
    print("Error batch " + span.id + ":");
    let m = span.metrics;
    for key in m.keys() {
      print("  " + key + ": " + m[key].to_string());
    }
  '

kelora: Config: /home/runner/.config/kelora/kelora.ini
Error batch #0:
  auth: 1
  database: 1
Error batch #1:
  api: 1
kelora hint: Metrics recorded; rerun with -m or --metrics=json to view them.

Pipeline flow:

1. First --exec: Add computed field
2. --filter: Keep only errors
3. Second --exec: Track metrics (only errors reach this)
4. --span: Batch every 2 errors
5. --span-close: Report per-span metrics

Spans operate on the result of your filters, so you get precise control over what gets batched.

---

Summary

You've learned to use span aggregation for time-windowed and count-based rollups:

• ✅ Count spans (--span N) batch every N post-filter events
• ✅ Time spans (--span 5m) create aligned wall-clock windows
• ✅ span.id identifies spans (#0 for count, ISO/duration for time)
• ✅ span.size counts events that survived
• ✅ span.events provides full event arrays for detailed analysis
• ✅ span.metrics gives automatic per-span metric deltas
• ✅ metrics provides cumulative totals across all spans
• ✅ meta.span_status detects late/unassigned/filtered events
• ✅ Spans work seamlessly with filters, execs, and tracking functions

Key properties:

Property	Count Spans	Time Spans
Span ID	#0, #1, ...	2024-01-15T10:00:00Z/5m
span.start	() (not applicable)	DateTime object
span.end	() (not applicable)	DateTime object
span.size	Event count	Event count
span.events	Full event array	Full event array
span.metrics	Per-span deltas	Per-span deltas
metrics	Global cumulative totals	Global cumulative totals

Common Mistakes

❌ Problem: Trying to use spans with --parallel

kelora -j --span 5 --parallel app.log
# Error: --span incompatible with --parallel

✅ Solution: Spans require sequential mode. Remove --parallel.

---

❌ Problem: Accessing span metrics in --exec

kelora -j --span 5 --exec 'print(span.metrics)' app.log
# Error: span not available in exec stage

✅ Solution: span.metrics is only available in --span-close.

---

❌ Problem: Late events with unsorted logs

# Logs are not sorted by timestamp
kelora -j random-order.log --span 5m --span-close '...'
# Many events marked as "late"

✅ Solution: Pre-sort logs by timestamp:

kelora -j random-order.log --output jsonl | sort -t'"' -k4 | kelora -j --span 5m --span-close '...'

---

❌ Problem: Missing timestamps in time spans

kelora -f logfmt app.log --span 5m
# Events without timestamps are "unassigned"

✅ Solution: Ensure logs have timestamp fields, or use --span N (count-based) instead.

---

❌ Problem: Large count spans consuming memory

kelora -j huge.log --span 1000000 --span-close 'for evt in span.events { ... }'
# High memory usage

✅ Solution: Use smaller spans, or switch to time-based spans which naturally limit buffering. If you don't need span.events, omit --span-close to avoid buffering.

---

❌ Problem: Forgetting to use .get_path() with span.metrics

--span-close 'let errors = span.metrics["errors"]'
# Crashes if "errors" key doesn't exist (zero delta omitted)

✅ Solution: Always use .get_path() with a default:

--span-close 'let errors = span.metrics.get_path("errors", 0)'

Tips & Best Practices

Quick Span Type Reference

Choose the right span mode for your use case:

--span N              # Count-based: Every N events (batch processing)
--span 5m             # Time-based: Fixed time windows (dashboards, time-series)
--span field_name     # Field-based: Group by field value (requests, sessions, IDs)
--span-idle 10m       # Idle-based: Detect inactivity gaps (sessions, bursts)

Choosing Count vs Time Spans

Use count spans when:

• You want fixed-size batches (every 1000 errors, every 100 requests)
• Timestamps are unavailable or unreliable
• Event ordering doesn't matter
• You're doing arrival-order analysis

Use time spans when:

• You need dashboard/time-series rollups
• You want aligned windows (every 5 minutes on the clock)
• You're correlating with external time-based systems
• Order matters (financial transactions, audit logs)

Memory Considerations

• Count spans buffer all events until span.size is reached
• Time spans buffer events within the current time window
• If you don't need span.events, skip --span-close to save memory
• Consider using --span-close without accessing span.events if you only need metrics

Sorting Recommendations

For time-based spans with out-of-order logs:

# Sort upstream before span processing
cat *.log | sort | kelora -j --span 5m --span-close '...'

# Or use GNU sort with large files
sort -S 2G --parallel=4 huge.log | kelora -j --span 1h --span-close '...'

Using Both Metrics Maps Effectively

Combine span.metrics and metrics for context-aware reporting:

// Pattern 1: Running commentary with context
let span_errors = span.metrics.get_path("errors", 0);
let total_errors = metrics.get_path("errors", 0);
eprint(`+${span_errors} errors (total: ${total_errors})`);

// Pattern 2: Threshold alerts after warmup
let total_processed = metrics.get_path("total", 0);
if total_processed > 1000 {  // Only alert after warmup
  let span_rate = span.metrics.get_path("errors", 0) / span.size;
  if span_rate > 0.10 { eprint("⚠️  Error rate exceeds 10%"); }
}

When to use each:

• span.metrics: "What changed in this window?"
• metrics: "What's the big picture?"

Signal Handling

If you press Ctrl+C during span processing, Kelora waits for the current --span-close hook to finish before exiting (press Ctrl+C twice to force quit). This prevents incomplete span reports.

Next Steps

Now that you understand span aggregation, continue your journey:

• Configuration and Reusability - Save span pipelines as reusable aliases
• How-To: Roll Up Logs with Span Windows - More advanced span patterns
• Concepts: Pipeline Model - Deep dive into span processing architecture

Related guides:

• Metrics and Tracking - Understanding track_*() functions
• Working with Time - Timestamp parsing and filtering
• Script Variables: State - Complex cross-event state tracking
• How-To: Build a Service Health Snapshot - Real-world monitoring patterns
