Format Reference

Quick reference for all formats supported by Kelora.

Input Formats

Specify input format with -f, --input-format <format>.

Overview

Format Description
auto Auto-detect from first non-empty line (default)
json Application logs, structured data (shorthand: -j)
line Unstructured logs, plain text (trailing newline/CR trimmed)
raw Plain text preserved verbatim (no trimming of newline/CR or other artifacts)
logfmt Heroku-style logs, simple structured logs
csv / tsv Spreadsheet data, exports
syslog System logs, network devices
combined Apache/Nginx web server access logs
cef ArcSight Common Event Format, SIEM data
cri Kubernetes CRI/containerd container logs (kubectl logs --timestamps, /var/log/pods/*)
<name> Built-in application-log formats (glog, log4j, …) — see --help-formats
cols:<spec> Custom column-based logs
regex:<pattern> Custom regex parsing with named groups and type annotations
<fmt1>,<fmt2>[,…] Cascade mode — try parsers in order, first success wins (e.g. json,line)

JSON Format

Syntax: -f json or -j

Description: JSON Lines format (one object per line). Nested structures preserved.

Input Example:

{"timestamp": "2024-01-15T10:30:00Z", "level": "ERROR", "service": "api", "message": "Connection failed"}

Output Fields: All JSON fields become event fields with original names and types.

Notes:

  • Use -M json for multi-line JSON objects
  • Preserves field types (strings, numbers, booleans, null)
  • Supports nested objects and arrays

Line Format

Syntax: -f line

Description: Plain text, one line per event.

Output Fields:

Field Type Description
line String Complete line content

Notes:

  • Auto-detect falls back to line when it can't identify a structured format
  • Empty lines are skipped
  • Useful for unstructured logs or custom parsing with --exec

Raw Format

Syntax: -f raw

Description: Plain text, one event per line, preserved verbatim. Unlike line, the trailing newline/CR is not trimmed and backslashes and other artifacts are kept exactly as read.

Output Fields:

Field Type Description
raw String Line content, byte-for-byte as read

Notes:

  • Choose raw over line when trailing whitespace or escape characters are significant (e.g. round-tripping data without normalization)
  • Like line, it matches every line, so in a cascade it must come last

Logfmt Format

Syntax: -f logfmt

Description: Heroku-style key-value pairs.

Input Example:

timestamp=2024-01-15T10:30:00Z level=ERROR service=api message="Connection failed"

Output Fields: All key-value pairs become top-level fields.

Notes:

  • Supports quoted values: key="value with spaces"
  • Keys must be alphanumeric (with underscores/hyphens)

CSV / TSV Formats

Syntax:

  • -f csv - Comma-separated with header
  • -f tsv - Tab-separated with header
  • -f csvnh - CSV without header
  • -f tsvnh - TSV without header

Output Fields:

  • With header: Field names from header row
  • Without header: c1, c2, c3, etc.

Type Annotations:

Specify field types for automatic conversion:

kelora -f 'csv status:int bytes:int response_time:float' access.csv

Supported types: int, float, bool

Notes:

  • Quoted fields supported: "value, with, commas"
  • Escaped quotes: "value with ""quotes"""
  • Embedded newlines inside quoted fields (RFC 4180) are supported: a record that spans several physical lines, e.g. "a","line1<newline>line2", is reassembled into a single event before parsing. This works in both sequential and -P/--parallel mode — the parallel batcher keeps whole records within a batch so the record can be stitched back together. A quote that is opened but never closed before end of input is genuinely malformed and reported as an Unterminated quoted field parse error in either mode.
  • Ragged rows are preserved, not dropped: columns beyond the header (or beyond the first row in header-less mode) are kept under positional names (c5, c6, ... counted from 1), and rows with fewer columns leave the trailing fields absent. Both cases are counted and reported as a hint on stderr.
  • --strict rejects ragged rows as parse errors instead.

Syslog Format

Syntax: -f syslog

Description: RFC5424 and RFC3164 syslog messages. Auto-detects format.

Input Examples:

RFC5424:

<165>1 2024-01-15T10:30:00.000Z myhost myapp 1234 ID47 - Connection failed

RFC3164:

<34>Jan 15 10:30:00 myhost myapp[1234]: Connection failed

Output Fields:

Field Type RFC5424 RFC3164 Description
pri Integer ✓ ✓* Priority value (facility * 8 + severity)
facility Integer ✓ ✓* Syslog facility code
severity Integer ✓ ✓* Severity level (0-7)
level String ✓ ✓* Log level (EMERG, ALERT, CRIT, ERROR, WARN, NOTICE, INFO, DEBUG)
ts String ✓ ✓ Parsed timestamp
host String ✓ ✓ Source hostname
prog String ✓ ✓ Application/program name
pid Integer/String ✓ ✓ Process ID (parsed as integer if numeric)
msgid String ✓ - Message ID
version Integer ✓ - Syslog protocol version
msg String ✓ ✓ Log message

*RFC3164: Only present if priority prefix <NNN> is included

Notes:

  • Severity levels: 0=emerg, 1=alert, 2=crit, 3=err, 4=warn, 5=notice, 6=info, 7=debug

Combined Log Format

Syntax: -f combined

Description: Apache/Nginx web server logs. Auto-handles three variants:

  • Apache Common Log Format (CLF)
  • Apache Combined Log Format
  • Nginx Combined with request_time

Input Examples:

Common:

192.168.1.1 - user [15/Jan/2024:10:30:00 +0000] "GET /index.html HTTP/1.0" 200 1234

Combined:

192.168.1.1 - user [15/Jan/2024:10:30:00 +0000] "GET /api/data HTTP/1.1" 200 1234 "http://example.com/" "Mozilla/5.0"

Nginx with request_time:

192.168.1.1 - - [15/Jan/2024:10:30:00 +0000] "GET /api/data HTTP/1.1" 200 1234 "-" "curl/7.68.0" "0.123"

Output Fields:

Field Type Common Combined Nginx Description
ip String ✓ ✓ ✓ Client IP address
identity String ✓ ✓ ✓ RFC 1413 identity (omit if -)
user String ✓ ✓ ✓ HTTP auth username (omit if -)
ts String ✓ ✓ ✓ Request timestamp
request String ✓ ✓ ✓ Full HTTP request line
method String ✓ ✓ ✓ HTTP method (auto-extracted)
path String ✓ ✓ ✓ Request path (auto-extracted)
protocol String ✓ ✓ ✓ HTTP protocol (auto-extracted)
status Integer ✓ ✓ ✓ HTTP status code
bytes Integer ✓ ✓ ✓ Response size (omit if -, keep if 0)
referer String - ✓ ✓ HTTP referer (omit if -)
user_agent String - ✓ ✓ HTTP user agent (omit if -)
request_time Float - - ✓ Request time in seconds (omit if -)

Notes:

  • Parser auto-detects variant per line
  • Fields with - values omitted (except bytes includes 0)

CEF Format

Syntax: -f cef

Description: ArcSight Common Event Format for security logs.

Input Example:

CEF:0|Security|threatmanager|1.0|100|worm successfully stopped|10|src=10.0.0.1 dst=2.1.2.2 spt=1232

Output Fields:

Syslog prefix (optional):

Field Type Description
ts String Timestamp from syslog prefix
host String Hostname from syslog prefix

CEF header:

Field Type Description
cefver String CEF format version
vendor String Device vendor name
product String Device product name
version String Device version
eventid String Event signature ID
event String Event name/classification
severity String Event severity (0-10)

Extensions: All extension key=value pairs become top-level fields with automatic type conversion (integers, floats, booleans)

CRI Format

Syntax: -f cri

Description: The Kubernetes CRI/containerd on-disk container-log layout — <RFC3339Nano> <stream> <tag> <message>. This is the raw shape of /var/log/pods/*/*.log, of kubectl logs --timestamps, and of what node-level log shippers (Fluent Bit, Vector, promtail) read before forwarding. The message is often itself JSON or logfmt; it is kept verbatim in msg for an optional second-stage parse.

Input Example:

2024-07-17T12:12:05.123456789Z stdout F {"level":"info","msg":"started"}
2024-07-17T12:12:06.223456789Z stderr P panic: runtime error: nil pointer

Output Fields:

Field Type Description
ts String RFC3339Nano timestamp written by the runtime
stream String stdout or stderr
tag String F (full line) or P (partial — the runtime split a line longer than ~16 KiB; consumers rejoin consecutive P lines up to the next F)
msg String The container's log line, kept verbatim

Example Usage:

# Show only stderr lines from a pod log file
kelora pod.log -f cri --filter 'e.stream == "stderr"' -k ts,msg

# Fan a structured JSON payload back into top-level fields, then filter on it
kelora pod.log -f cri --exec 'e.absorb_json("msg")' --filter 'e.level == "error"'

Notes:

  • Unlike the other built-in application-log formats (see below), cri is part of auto-detection's early path — it is tried before the logfmt and CSV steps, because a CRI message is frequently itself JSON or logfmt (whose commas/pairs would otherwise be misdetected as CSV/logfmt). Auto-detection therefore recognises CRI logs regardless of the message payload.
  • The Docker json-file log driver writes a different shape (one JSON object per line with log/stream/time keys) — use -f json for those.

Built-in Application-Log Formats

Beyond the wire/access formats above, Kelora ships a curated set of built-in application-log layouts — glog (Go/Kubernetes klog), nginx-error, apache-error, log4j/Java, python-logging, postgres (PostgreSQL server log), redis, s3, haproxy, and iso8601-level — that parse into ts, level, msg, and format-specific extras. Select them with -f <name> (e.g. -f log4j) or inside a cascade (-f log4j,line). With the exception of cri (above), they are tried only as the last step before the line fallback, so they never override a format detected earlier. Run kelora --help-formats for the full catalogue, sample lines, and per-format notes. (These definitions are adapted from lnav, BSD-3-Clause; cri is Kelora-original.)

The access-log formats (s3, haproxy) keep only a curated set of useful fields and may drop a long, version-dependent tail. Nothing is lost: the full raw line is always available to a script as line / meta.line, so a dropped column can be recovered with a second-stage parse, e.g. extracting a trailing quoted column off the raw line:

kelora -f s3 access.log \
  --exec 'e.tail = meta.line.extract_regex("\"[^\"]*\"\\s*$", 0)'

postgres matches the default log_line_prefix = '%m [%p] ' (2024-01-02 15:04:05.123 UTC [1234] LOG: …); a customized prefix (adding user@db, an application name, etc.) won't auto-detect — reach those with -f regex:.

A PostgreSQL error often spans several physical lines — an ERROR:/STATEMENT: record followed by tab-indented query-continuation lines that carry no prefix. Parse those with -M indent, which folds the indented lines into the preceding record before parsing; without it they are reported as parse errors and dropped. (-f postgres,line is the alternative: it keeps each unmatched continuation line as a raw line event instead of folding it.)

Its ts is naive: like the other timestamp-only formats, it is resolved through --input-tz (default UTC), not the zone abbreviation logged on the line. The abbreviation is preserved in the log_tz field for inspection but not applied to the timestamp, because zone abbreviations are ambiguous (CST, BST, IST each map to several zones) and an abbreviation alone cannot encode DST — so it cannot be reliably converted to an offset. (The field is named log_tz, not tz, to signal that it is the abbreviation the server logged, not the zone applied to the timestamp.) A Postgres server logging in UTC (the common, recommended configuration) is therefore correct by default; for a server logging in a non-UTC zone, pass --input-tz <IANA> matching its log_timezone, e.g. --input-tz Europe/Berlin.

Column Format

Syntax: -f 'cols:<spec>'

Description: Custom column-based parsing with whitespace (or custom separator) splitting.

Separator: Use --cols-sep <separator> for custom separators (default: whitespace)

Specification Syntax:

  • field - Consume one column
  • field(N) - Consume N columns and join
  • - or -(N) - Skip one or N columns
  • *field - Capture remaining columns (must be last)
  • field:type - Apply type annotation (int, float, bool, string)

Examples:

Simple fields:

# Input: ERROR api "Connection failed"
kelora -f 'cols:level service *msg' app.log

Multi-token timestamp:

# Input: 2024-01-15 10:30:00 INFO Connection failed
kelora -f 'cols:ts(2) level *msg' app.log --ts-field ts

Custom separator:

# Input: name|age|city
kelora -f 'cols:name age:int city' --cols-sep '|' data.txt

Output Fields: Field names from specification with applied type conversions.

Notes:

  • *field must be the final token

Regex Format

Syntax: -f 'regex:<pattern>'

Description: Parse logs using regular expressions with named capture groups and optional type annotations.

Pattern Syntax:

  • (?P<name>pattern) - Named capture group (field stored as string)
  • (?P<name:type>pattern) - Named capture group with type annotation

Supported Types: int, float, bool (lowercase only)

Examples:

Simple extraction:

# Input: 404 Not found
kelora -f 'regex:(?P<code:int>\d+) (?P<msg>.*)' app.log

Structured logs:

# Input: 2025-01-15T10:00:00Z [ERROR] Database connection failed
kelora -f 'regex:^(?P<ts>\S+) \[(?P<level>\w+)\] (?P<msg>.+)$' app.log

Apache-style logs with typed fields:

# Input: 192.168.1.1 - - [15/Jan/2025:10:00:00 +0000] "GET /api/users HTTP/1.1" 200 1234
kelora -f 'regex:^(?P<ip>\S+) - - \[(?P<timestamp>[^\]]+)\] "(?P<method>\w+) (?P<path>\S+) HTTP/[\d.]+" (?P<status:int>\d+) (?P<bytes:int>\d+)$' access.log

Output Fields: Field names from capture groups with applied type conversions.

Behavior:

  • Full-line matching: Pattern implicitly anchored with ^...$
  • Empty captures: Skipped (not stored as fields)
  • Non-matching lines:
    • Default (lenient): Returns error, line skipped, processing continues
    • With --strict: Returns error, processing halts
  • Type conversion failures (e.g., "abc" for :int):
    • Default (lenient): Automatically falls back to storing as string
    • With --strict: Returns error, processing halts

Reserved Field Names:

The following names cannot be used: original_line, parsed_ts, fields

Limitations:

  • Nested named capture groups are not supported
  • Type annotations must be lowercase (:int, not :INT)

Notes:

  • Use raw strings in shell to avoid escaping issues: -f 'regex:...'
  • Combine with --ts-field to specify which field contains the timestamp
  • Non-capturing groups (?:...) are supported

Auto-Detection

Syntax: -f auto

Description: Automatically detect format from first non-empty line.

Detection Order:

  1. JSON (starts with {)
  2. Syslog (starts with <NNN> or an RFC3164 date)
  3. CEF (starts with CEF:)
  4. Combined (matches Apache/Nginx pattern)
  5. CRI (<RFC3339Nano> stdout|stderr F|P …, tried early so a JSON/logfmt message isn't misread as CSV/logfmt)
  6. Logfmt (contains key=value pairs)
  7. CSV (contains commas with consistent pattern)
  8. Built-in application-log formats (regex-based: glog, log4j, …; see --help-formats)
  9. Line (fallback)

Notes:

  • Detects once, applies to all lines
  • Not suitable for mixed-format files — use cascade mode instead

Auto-Detection Per File

Syntax: -f auto-per-file

Description: Automatically detect format from the first non-empty line of each input file, then apply that parser to the rest of the file.

Good fit: Batch runs where each file is internally consistent, but different files use different formats.

Example Usage:

# JSON app logs and logfmt worker logs in one invocation
kelora -f auto-per-file -J logs/api/*.log logs/workers/*.log

# Aggregate error events across mixed file formats without splitting first
kelora -f auto-per-file --levels error,warn logs/**/* -J

Notes:

  • Detects once per file
  • Uses the same first-non-empty-line semantics as -f auto
  • For mixed formats within a single file, use cascade mode instead
  • Not supported with --parallel or --merge-sorted

Cascade Mode

Syntax: -f <fmt1>,<fmt2>[,…] (comma-separated list of simple formats)

Description: Try each parser in order on every line; the first one that succeeds handles the event. Designed for the common "noisy JSON" case — structured logs with plain-text noise (stack traces, panics, startup banners) interspersed — without requiring users to split the stream with grep first.

Input Example:

{"level":"info","msg":"hello"}
Server starting on port 8080
{"level":"error","msg":"connection refused"}
java.lang.NullPointerException

Example Usage:

# Noisy JSON with plain-text fallback
kelora -f json,line app.log

# Three-way cascade
kelora -f json,logfmt,line mixed.log

# Segment downstream by how each event was parsed
kelora -f json,line app.log --filter 'e._format == "line"'

# See per-format breakdown
kelora -f json,line app.log --stats

The _format field: Every event emitted in cascade mode gets a _format field naming the winning parser (e.g. "json", "line"). This field is only added in cascade mode — single-format runs are unchanged. Filter or group by it in Rhai, or inspect it in the output to debug classification.

Diagnostic counts: With --stats, cascade mode adds a per-format breakdown so silent misclassification surfaces immediately:

Cascade formats: json=9812, line=23

Allowed in a comma list: json, line, raw, logfmt, syslog, cef, combined.

Not allowed in a comma list (rejected at CLI parse time):

  • auto — meaningless inside a cascade list; list the formats explicitly
  • csv, tsv, csvnh, tsvnh — schema-based; headers/types can't safely change mid-stream
  • cols:<spec>, regex:<pattern> — a regex pattern may itself contain commas, so commas can't safely delimit them. Use repeated -f instead.

Cascades with cols:/regex: — use repeated -f. Pass one -f per format and they are tried in order, exactly like a comma list, but each spec is taken whole so cols:/regex: work as members:

# JSON lines plus a 'timestamp LEVEL message' app log in one file
kelora -f json -f 'cols:ts(2) level *msg' app.log

# Selective regex first, raw line as the catch-all for anything else
kelora -f json -f 'regex:(?P<ts>\S+ \S+) (?P<level>\w+) (?P<msg>.*)' -f line app.log

A comma list and repeated -f can be combined; comma-list members are flattened into the cascade in order.

Catch-alls go last. line, raw, and cols: match essentially every line (in resilient mode cols: fills missing fields with () rather than failing), so anything listed after them would never run — Kelora rejects that ordering. regex: is selective: it declines non-matching lines, so it may sit earlier in the cascade and fall through to a later catch-all (as in the example above, where stack-trace lines that don't match the regex are kept by line).

Ordering matters. The first parser that returns Ok wins, so list high-confidence formats first and use line as the terminal fallback. Liberal grammars (like logfmt, which accepts any key=value substring) should come after stricter ones to avoid swallowing events that a later parser would handle correctly.

Multiline: Multiline chunking is format-aware and runs before parsing, so it follows the first listed format's strategy. Per-chunk reclassification is intentionally not supported.

Notes:

  • Adds ~5–10% overhead per line vs. a single parser (one extra parse attempt on fall-through)
  • Safe to combine with --filter, --select, --stats, --metrics, and Rhai scripting
  • Works in both sequential and parallel modes

Output Formats

Specify output format with -F, --output-format <format>.

Format Description
default Key-value format with colors
json JSON lines (one object per line)
logfmt Key-value pairs (logfmt format)
inspect Debug format with type information
levelmap Events grouped by log level
keymap Shows first character of specified field (requires --keys with exactly one field)
tailmap Visualizes numeric field distributions with percentile thresholds (requires --keys with exactly one numeric field)
csv CSV with header row
tsv Tab-separated values with header row
csvnh CSV without header
tsvnh TSV without header

Use -q/--quiet to suppress output (implied by --stats and --metrics).

Levelmap Visual Example:

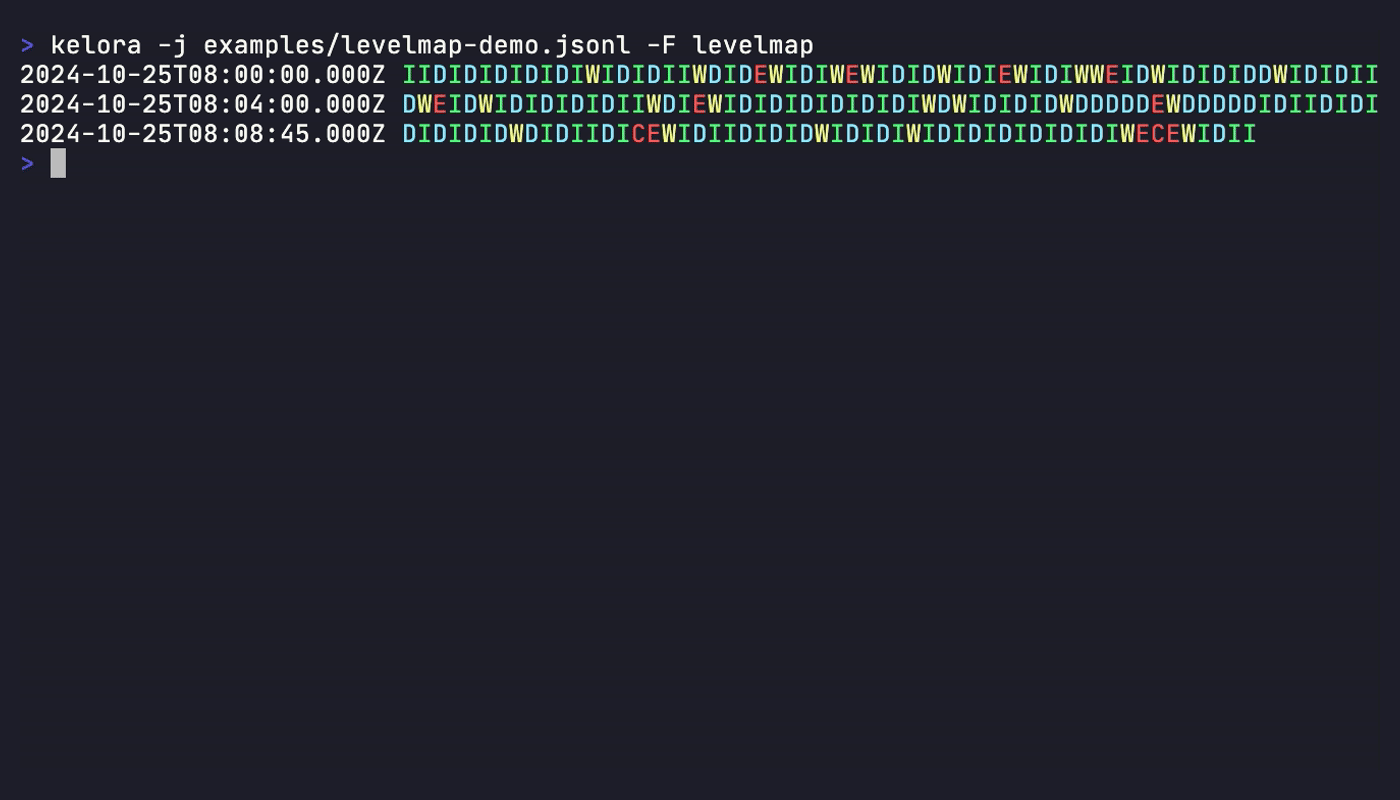

Levelmap output format showing compact log visualization

The levelmap format provides a compact visual representation of logs, showing timestamps and level indicators in a condensed format ideal for quick scanning.

Map legends:

All three map formats (levelmap, keymap, tailmap) append a one-line legend that decodes their glyphs. The legend is data-driven: it lists only the glyphs that actually appeared, mapped back to the source values that produced them. For example a keymap over HTTP status codes might end with 2 = 200,204 | 4 = 404 | 5 = 500,503, and a levelmap with E = ERROR | I = INFO | W = WARN.

By default the legend is shown only when output goes to an interactive terminal, so piped or redirected output stays clean. Override with:

  • --legend — always append the legend (even when piped)
  • --no-legend — never append the legend

Keymap Format:

The keymap format works similarly to levelmap but displays the first character of any specified field instead of being limited to log levels. This is useful for visualizing patterns in custom fields like HTTP methods, status codes, user types, etc.

  • Requires --keys (or -k) with exactly one field name
  • Shows the first character of the field value (converted to string for non-string fields)
  • Displays . for empty or missing field values
  • Groups events by timestamp like levelmap
  • Legend groups full values under each glyph (e.g. 2 = 200,204)
  • Not compatible with --parallel mode

Tailmap Format:

The tailmap format visualizes numeric field distributions over time using tail-focused percentile thresholds (p90, p95, p99). This is ideal for performance monitoring, latency analysis, and identifying outliers.

  • Requires --keys (or -k) with exactly one numeric field name
  • Uses symbols: _ (below p90), 1 (p90-p95), 2 (p95-p99), 3 (above p99), . (missing)
  • Shows a summary with field statistics and percentile thresholds
  • Groups events by timestamp for timeline visualization
  • Not compatible with --parallel mode

Use cases: - API response time analysis - Database query performance monitoring - Request latency tracking - Any time-series numeric data where tail latencies matter

Examples:

kelora -j app.log -F json                      # Output as JSON
kelora -j app.log -F csv --keys ts,level,msg   # Output as CSV
kelora -F keymap -k method access.log          # Show HTTP method patterns
kelora -F keymap --keys status api.log         # Show status field patterns
kelora -F tailmap -k response_time api.log     # Visualize response time distribution
kelora -F tailmap --keys query_time_ms db.log  # Show database query performance
kelora -j app.log --stats                      # Only stats

See Also
